DVB-T2 and HD satellite tv decoders
Tivumax LT HD-3800S2
80988
Tivumax LT HD-3801S2
80989

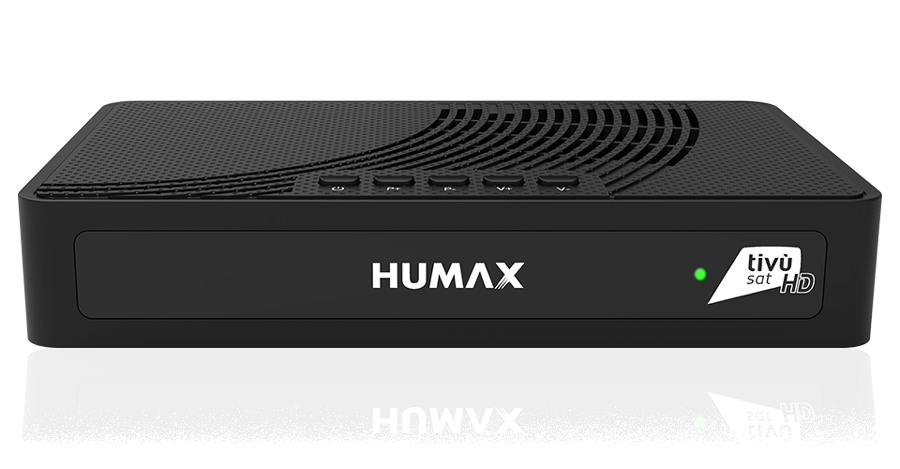

The new Tivumax LT decoder is a high definition satellite receiver, equipped with tivùsat HD certification, compatible with modern SCR and dCSS unicable LNBs.
The Easy HD function allows automatic and priority access to the HD channels present on tivùsat. The electronic program guide (EPG) by tivùsat displays all the information of the next few days TV programs on your TV screen. The compatibility with IF-IF systems is interesting thanks to the blind-scan function, a technical feature that makes Tivumax LT versatile and avant-garde in any type of system.
80988
80989
GENERAL FEATURES
DVB-S2 tuner (SAT IN + SAT OUT)
Compatible with tivùsat HD
dCSS functionality allows to interface the decoder with a dCSS LNB or Multiswitch and use all 16 frequencies
Compatible with IF-IF systems, thanks to the blind-scan function
Teletext and subtitles
Electronic Program Guide (tivùsat EPG)
Automatic sorting of tivùsat channels (LCN)
Automatic software update via OTA and USB
Interactive services: weather and maps
Scart and HDMI video output
Input for Ethernet cable (LAN)
USB 2.0 (supports Wi-Fi dongle)
Universal remote control to control the TV-set, as well
Equipped with keys for on / off, volume adjustment and channel switch
12V DC power supply
The tivùsat smartcard is included in the package
80988
80989
TECHNICAL SPECIFICATIONS
Tuner
Input frequency: DVB-S / S2 950 - 2150 MHz
Input signal level: DVB-S / S2 -65 dBm ...- 20 dBm
Modulation: QPSK, 8PSK
Video
Output format: H.265 / H.264, MPEG-1, MPEG-2, MPEG-4, VC-1, AVS, MVC
Output level 1 Vp-p (75 ohm)
Audio
MPEG-1 layer I / II, MPEG-2 layer II, Dolby Digital / Dolby Digital Plus Decoder
Output terminal: SCART / Coaxial / HDMI
Operating conditions
Power supply: 12V DC
Power consumption: 15W max
Temperature: 0 - 40° C
Humidity: 10% - 90%
Digimax LT - HD-2020T2
80906T2
The Digimax digital terrestrial decoder is the new DVB-T2 HEVC HD zapper receiver Main 10; it is a definitive product that can be used immediately and is already compatible with the reception of future television programs in DVB-T2 with HEVC codec.
GENERAL FEATURES
Full HD DTT receiver with video resolution up to 1080p
Timeshift function
LCN and manual and automatic channel search
Electronic Program Guide (EPG)
Automatic shutdown after 3 hours of inactivity
Media Player: plays photos, videos and music from USB or HDD
SW update via OTA, USB or via network connection
Scart and HDMI video output
Side USB port
Input for Ethernet cable (LAN)
Dolby Digital audio compatible
Universal remote control to control the TV-set, as well
12V DC power supply
80906T2
TECHNICAL SPECIFICATIONS
Tuner
Input frequency: VHF (7M) 174 ... 230 MHz; UHF (8M) 470 ... 862 MHz
DVB-T2 standard with COFDM demodulation
RF input connector: IEC female
Video
Standard: H.265 / HEVC, H.264 / AVC high profile @ level 4 (1080i25), level 3.1 (720p25), level 3.2 (720p50)
Video format: PAL
Video Resolution: 1080i, 1080p output
Audio
Audio decoding: MPEG-1 layer I / II, MPEG-2 layer II
Output mode: Stereo / dual channel
Operating conditions
Power supply: 12V DC
Power consumption: 8W max
Digimax LT - HD-2021T2
80907T2
Digimax SCART digital terrestrial decoder is the new HD zapper DVB-T2 HEVC Main 10 rear TV receiver. It is compatible with future DVB T2 TV programs with HEVC codec and it can be put on the back of TV, connected to SCART or HDMI output.
GENERAL FEATURES
DVB-T2 HEVC H.265 10bit digital terrestrial decoder, Video resolution up to 1080p (Full HD)
Tuning of both TV and radio channels
Supported video formats: 16:9, 4:3 LB, 4:3 PS
Manual and automatic channel search
Subtitles and double audio (where available)
Automatic shutdown after 3 hours of inactivity (it can be disabled)
Ability of program custom timers
Compatible with Dolby Digital Audio
Electronic Program Guide (EPG)
Search with automatic sorting of channels (LCN)
Teletext
USB input for multimedia content playback from an external memory drive
2-in-1 remote controller to control decoders and main TV controls
Including IR extender (infrared) for remote control
External power supply AC 100-240 / DC 12V
Inputs/Outputs: : 1x RF IN, 1x HDMI OUT, 1x Ethernet, 1x Scart, 1x USB, 1x IR Sensor, 1x DC IN
80907T2
TECHNICAL FEATURES
Tuner
Input frequency: VHF (7M) 174...230 MHz; UHF (8M) 470...862 MHz
DVB-T2 standard with COFDM demodulation
RF input connector: IEC female
Video
Standard: H.265/HEVC, H.264/AVC high profile@level 4 (1080i25), level 3.1 (720p25), level 3.2 (720p50)
Video format: PAL
Video resolution: 1080i, 1080p output
Audio
Audio decoding: MPEG-1 layer I / II, MPEG-2 layer II
Output mode: Stereo / dual channel
General operating conditions:
Power supply: 12V DC
Dimensions: 150x80x25 mm
Humax Tivùsat Cam
102CI
Humax 4K ULTRA HD CAM is a Tivùsat certified conditional access module which, together with bundled Tivùsat 4K ULTRA HD smartcard, allows the viewing of free and encrypted TV programs on Tivùsat platform programs in 4K ULTRA HD, HD (HIGH definition) and SD (standard definition). Tivùsat 4K CAM, compatible with all certified TVs equipped with CI+ slots, introduces an Enhanced Content Protection system (ECP) required by major film studios for the access to protected contents.
Wi-Fi dongle
80HWF
Wi-Fi dongle compatible only with Tivumax decoders HD-6800S cod. 80990HD and Tivumax Recorder cod.80986HD.The accessory is self-installed and enables the connection to local decoder Wi-Fi network in order to access to OTTV functions, Tivùon or to home network multimedia contents via DLNA. Using this dongle avoids physically connecting the decoder with a network cable.
